Carbon fiber panel


Kmotexas
 Share

Recommended Posts

Hi ,

Just have some time on my hands ..."alway dangerous "

Don't liked my paint peeling and holes drilled all over the place panel anymore.

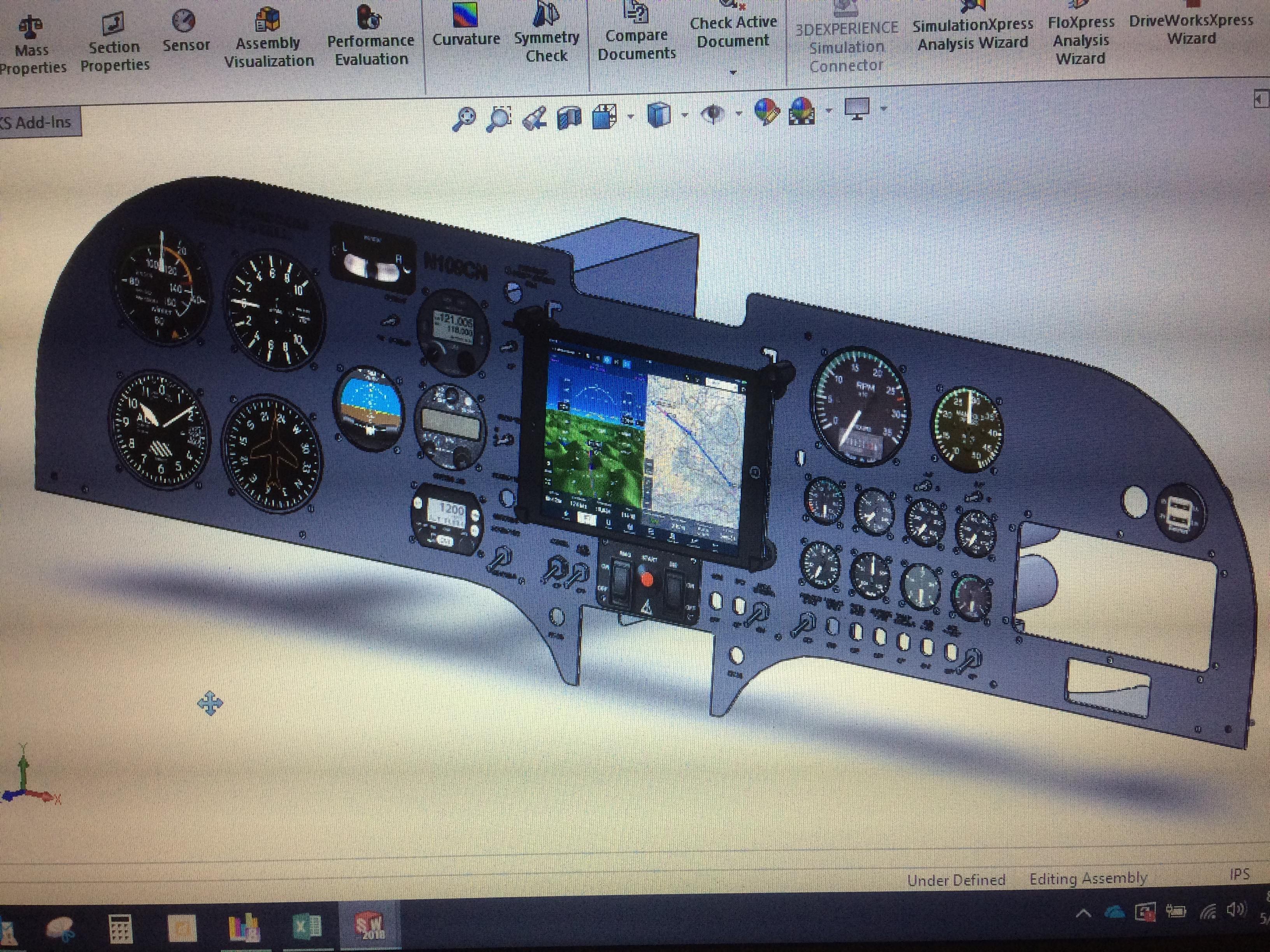

I spend a few Hrs with SolidWorks and designed a new one......

Klaus


Link to comment
Share on other sites

The File is still in REV status. When done I will post the design.

just found out you own a 109 too.........

material is aviation approved carbon fiber.  About $900 included cutting ( without markings )

markings silkscreen  about $300

ipad support ( 3D printed $80 each )

All engine instruments UMA ( set about $3500)

redesign to your spec  $ 50 per instrument .

SolidWorks2018 is required to redesign.

Klaus















klaus

Link to comment
Share on other sites

Thanks in the process of generating the engineering to replace with a 100hp Rotax so will need to update the panel shortly.



where did you get that nice ignition switch panel from

Link to comment
Share on other sites

  • 2 years later...

Hi Klaus,

Just been looking at the great job you have done with your 109. Any chance I can grab a copy of the solidworks panel templet. I have VH-ZAK S/N 6085 in Australia

Thanks

Andrew

Link to comment
Share on other sites

Hi Andrew,

Yes, not a problem. However, the template is specific design for the instruments and components in use. When you cut this template as is you need to follow my BOM.

Just let me know what do you like to accomplish.

Klaus








Link to comment
Share on other sites

On 6/22/2019 at 5:58 AM, Andrew said:

Thanks in the process of generating the engineering to replace with a 100hp Rotax so will need to update the panel shortly.



where did you get that nice ignition switch panel from

Did you do the upgrade to the rotax?

Link to comment
